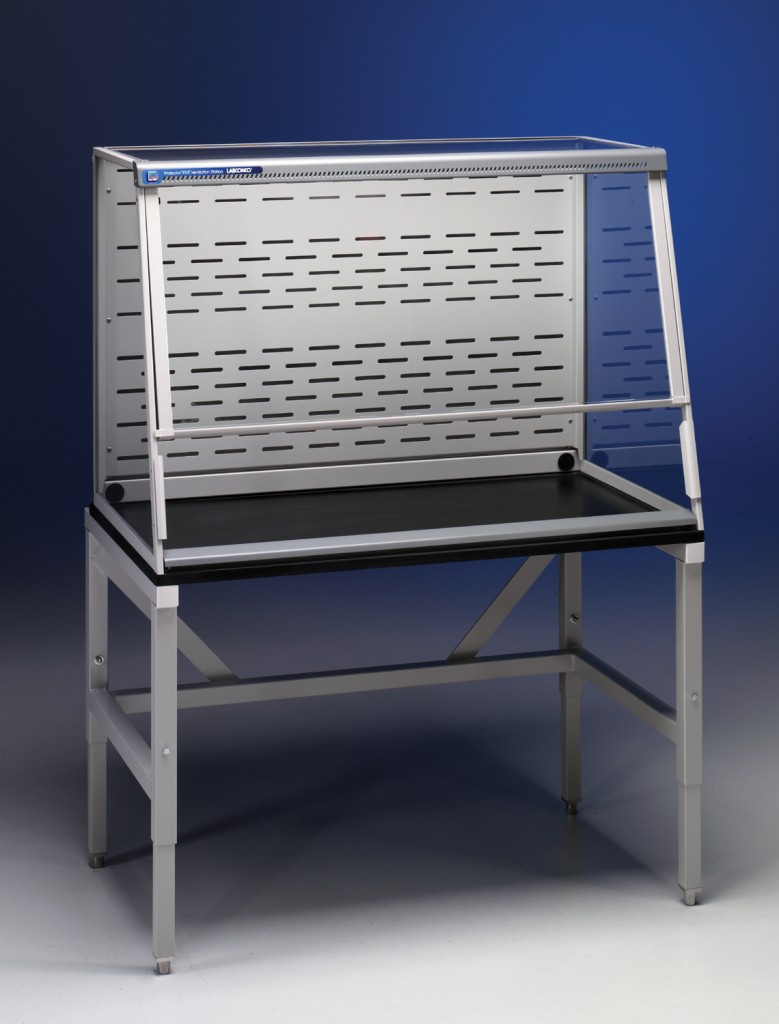

4866030 6' Protector XVS Ventilation Station

4866030 6' Protector XVS Ventilation Station
LabConco Brand Product
List PriceUS$9,300.00
Our PriceUS$8,370.00
Catalog ID4866030

Protector XVS Ventilation Stations may be used as light duty fume hoods, science classroom work stations, solvent cleaning work bays, weighing stations or for pathology and cytology. With glass tops and sides and low profiles, they are well suited for educational settings. Patented (U.S. Patent No. 6,461,233) features including the Clean-Sweep air foil and zone-perforated rear baffle maximize containment.

Protector XVS Ventilation Stations may be ducted to the outside or connected to the FilterMate Portable Exhauster for HEPA and/or Carbon Filtered exhaust back into the laboratory.

Attributes

  • Product Subcategory:Educational
  • Nominal Width:6'
  • Region:Not Applicable
  • Air Usage/Static Pressure with Sash At Working Height:At 60 fpm, exhausts 350 CFM at .27" H20 static pressure. At 80 fpm, exhausts 465 CFM at .48" H20 static pressure.
  • Blower Requirements:Remote blower required
  • Conformance:ANSI Z9.5, Modified ASHRAE 110, SEFA 1
  • Lighting:None. Light Kit Accessory available.
  • Style:Benchtop

Specifications

  • Estimated Shipping Weight:395.0 lbs
  • Estimated Shipping Weight metric:179.0 kg
  • Dimensions:72.0" w x 29.0" d x 32.0" h
  • Dimensions metric:182.9 cm x 73.7 cm x 81.3 cm
  • Electrical:N/A
