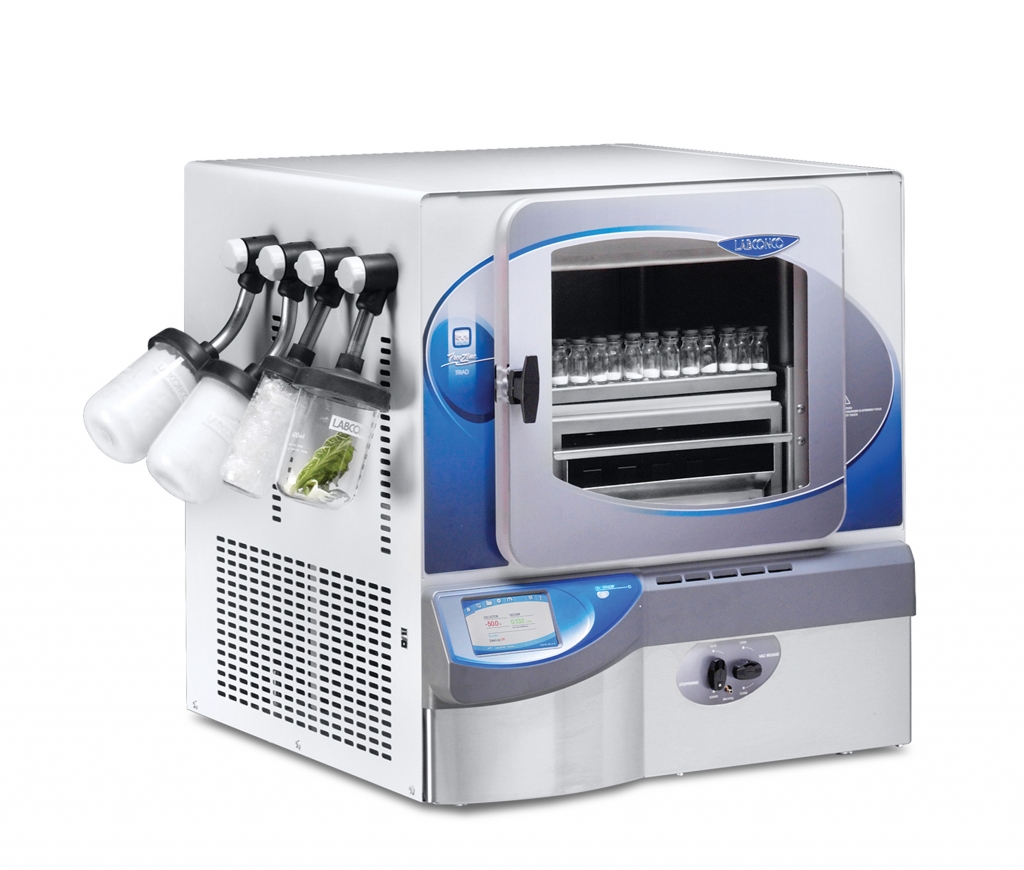

794001015 FreeZone Triad Benchtop Freeze Dryer

794001015 FreeZone Triad Benchtop Freeze Dryer
LabConco Brand Product
List PriceUS$43,645.00
Our PriceUS$39,280.50
Catalog ID794001015

FreeZone Triad Benchtop Freeze Dryers are designed for multiple types of lyophilization: flask, bulk and stoppering vials. With the ability to freeze dry samples in so many different forms, the Triad's versatility and compact design make it perfect for busy labs.

The upright stainless steel collector coil holds 2.5 liters of ice before defrosting. Two 1/3 hp HCFC/CFC-free refrigeration compressors cool the collector to-85° C (-121° F), suitable for aqueous or dilute acetonitrile samples. Temperature-controlled shelves range from -55° C to +50° C (-67° F to +122° F) and a maximum of -75° C (-103° F) during pre-freezing. The shelves provide pneumatic stoppering with a diaphragm, eliminating the need for compressed gas.

Lyo-Works OS provides a real time display of collector temperature and vacuum level, shown on a 5" full color, capacitive touch screen. A stoppering tray dryer and four valve ports are built-in.

  • Stay Connected
  • View Real-Time Sample Data
  • Get Consistent, High Quality Results
  • Make Challenging Samples Easy

Vacuum pump and freeze dry glassware (if not bulk freeze drying) are required (not included).


Attributes

  • Region:International
  • Collector Temperature:-85° C, -121° F
  • Conformance:CAN/CSA C22.2, UL
  • Ice Holding Capacity:2.5L
  • Plug Type:Saudi Arabia
  • Style:Benchtop
  • Vacuum Pump Displacement Required:98 L/min or larger displacement

Specifications

  • Estimated Shipping Weight:440.0 lbs
  • Estimated Shipping Weight metric:199.6 kg
  • Dimensions:28.3" w x 29.5" d x 27.7" h
  • Dimensions metric:71.9 x 74.9 x 70.4 cm
  • Electrical:230V, 60 Hz, 12A
